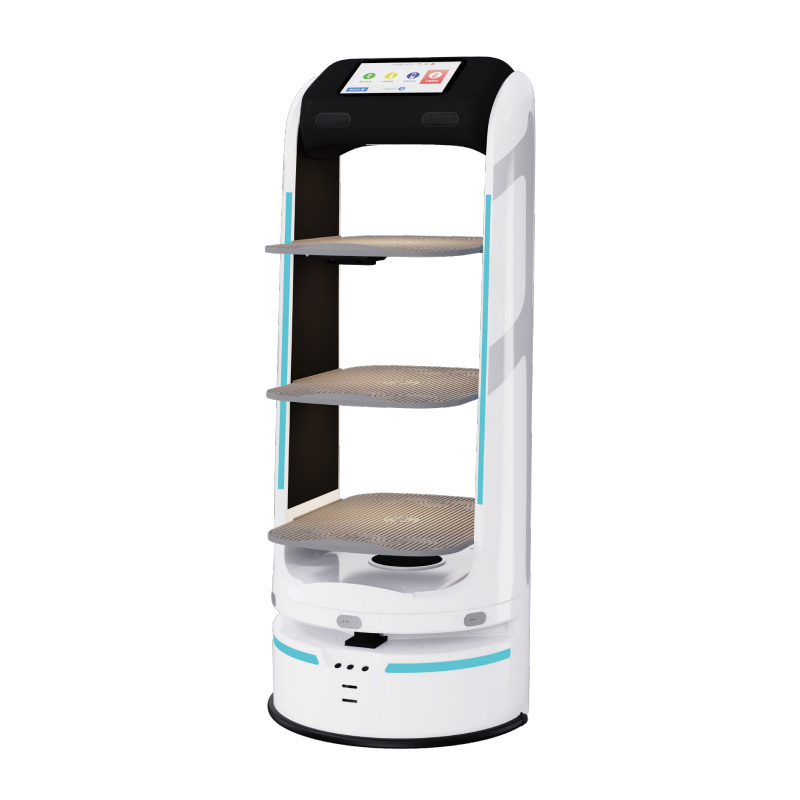

Restaurant Service Robot

Product Features

● Modular detachable shelves
● Intelligent path planning
●  360° omnidirectional obstacle avoidance
● Intelligent voice interaction
● Load-bearing first-class frame

  • Restaurant Service Robot

PRODUCT OVERVIEW

Hire treasure meal machine people to deliver wisdom canteen 4.0, which operates throughout the year without rest, and the chef in the restaurant is a pioneer! Intelligent return tray disk: new generation high-performance special tray, equipped with depth camera, ultrasonic sensor, laser radar sensor, so as to realize fluent obstacle avoidance and safety protection. The large load can be adjusted by the disc: up to 4 large discs weighing 15kg can be equipped, and the position of the disc can be adjusted according to customer needs for practical use and double combination.

DETAILS ARCHITECTURE

① 9-inch IPS high-definition touch screen
② Touch button
③ Combined type detachable backplane
④ Open tray
⑤ Smart light effect
⑥ Laser SLAM
⑦ Depth camera

PRODUCT PARAMETERS

External dimensions

1297 mm * 296 mm * 505 mm

Product weight

55 kg

Rated load capacity

50 kg

Wheel system

2 driving wheels + 4 directional wheels + 2 auxiliary wheels

Turning radius

252.5 mm

Minimum ground clearance

25 mm

Movement speed

Default speed 1 m/s, maximum speed 1.2 m/s

Maximum obstacle

8 mm

Maximum slope

5°

Maximum trench

20 mm

Minimum passing distance

70 cm

Secondary construction area

50,000 square meters

Maximum operating area

80,000 square meters

Battery capacity

25.2 V 35 AH (21 V ~ 29.4 V) 18650 lithium battery

Endurance capability

8 hours
