Home > All Collections > Disinfection Robots > Uv Disinfection Robot
  • Uv Disinfection Robot
  • Uv Disinfection Robot

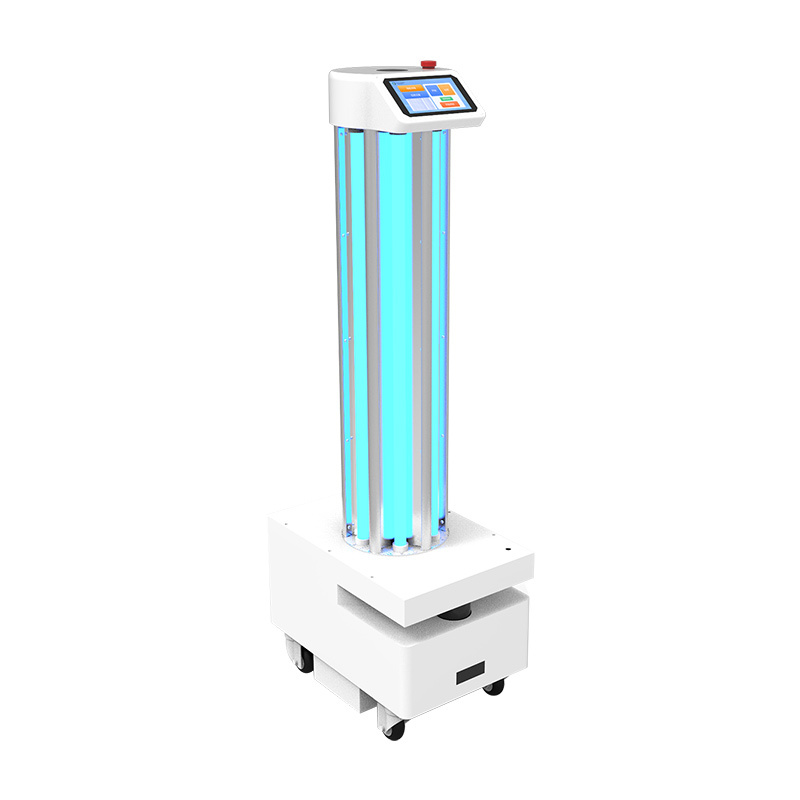

Uv Disinfection Robot

Get A Quote
Add to Quote List View Quote List
  • Uv Disinfection Robot

PRODUCT OVERVIEW

,Fubao Robo
The PHILIPS UV-C light source used in the Skyfly intelligent ultraviolet disinfection robot has a sterilization rate of over 99.9999% against COVID-19, offering significant advantages such as high efficiency, broad spectrum, thoroughness, no drug resistance, and absence of secondary pollution. It is an environmentally friendly disinfection product.

FUNCTION INTRODUCTION
,Fubao Robo

Scheduled Disinfection

Pre-set disinfection time and target points, automatically execute disinfection tasks
,Fubao Robo

Ultraviolet Light Source

6PCS ultraviolet lamp tubes, high-intensity ultraviolet disinfection
,Fubao Robo

High-Efficiency Sterilization

Power of 180W, wavelength of 254NM ultraviolet short-wave, virus inactivation rate of 99.9999%
,Fubao Robo

Automatic Charging

When the battery is low, it can find the charging position and accurately dock, after charging is completed, it can be automatically put into use
,Fubao Robo

Autonomous Route Planning

Independently plan disinfection routes, full-process disinfection or target point disinfection
,Fubao Robo

Intelligent Obstacle Avoidance

0.5S intelligent obstacle avoidance, indoor autonomous route planning
,Fubao Robo

Map Construction

Laser SLAM combined with V-SLAM, accurate map construction and positioning
,Fubao Robo

DETAILS ARCHITECTURE

① Emergency Stop Switch
② Positioning camera
③ 7.1-inch IPS Screen
④ Ultraviolet Lamp
⑤ Laser Radar
⑥ Infrared Sensor
⑦ Driving Wheel

PRODUCT PARAMETERS

,Fubao Robo

Dimensions

540mm360mm1420mm
,Fubao Robo

Weight

52KG
,Fubao Robo

Battery Life

2.5~3 hours
,Fubao Robo

Display

7.1-inch IPS screen (16:9), 1024600 resolution
,Fubao Robo

Lamp Model

PHILIPSTUV8
,Fubao Robo

Lamp Power

30W/PCS6PCS=180W
,Fubao Robo

Lamp Length

90CM
,Fubao Robo

Charging Method

Self-charging
,Fubao Robo

Battery Capacity

Battery pack 10516P capacity 20800MAH/37V
,Fubao Robo

Power Adapter

Input: AC100-240V, 50-60HZ Output: DC42V3A automatic charging, DC direct charging
,Fubao Robo

Main Processor

RK3128
,Fubao Robo

USB Test Port

MICROUSB2.0 interface
,Fubao Robo

Networking Technology

Supports dual-band 2.4 5GWIFI802.11B/G/N wireless LAN
,Fubao Robo

Laser Range Finder

20 meters
,Fubao Robo

Avoidance method

Radar, depth camera, ultrasonic multi-sensor fusion obstacle avoidance
,Fubao Robo

Single Line Laser Radar

Laser wavelength 905NM working area 270 degrees
,Fubao Robo

Supported Languages

Chinese, English

APPLICATION SCENARIO
,Fubao Robo

hotel
View Detail
,Fubao Robo

operating room
View Detail
,Fubao Robo

office building
View Detail
,Fubao Robo

office
View Detail
,Fubao Robo

Aseptic workshop
View Detail
,Fubao Robo

laboratory
View Detail
